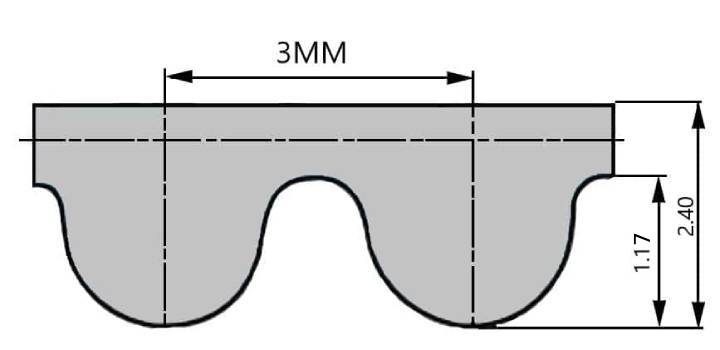

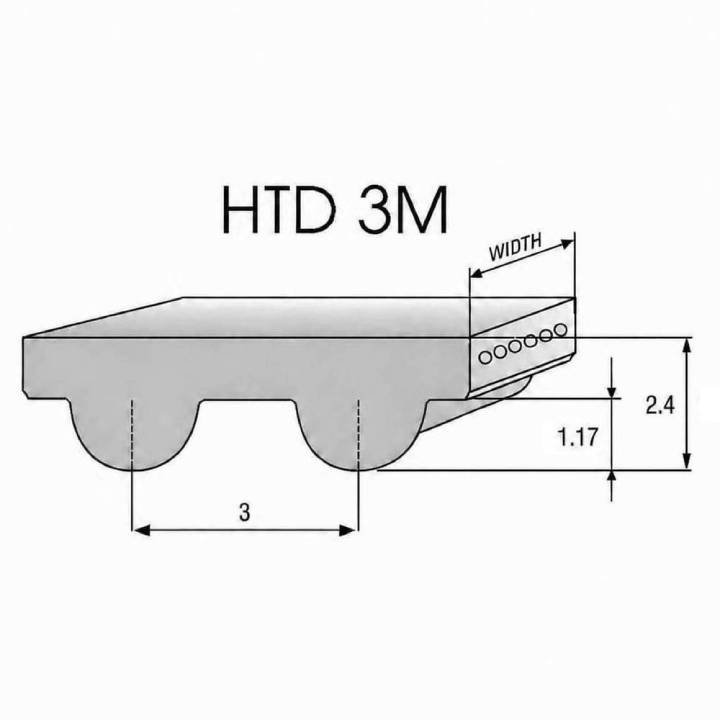

HTD 3M Timing Belt Tooth Profile Dimensions
Parameter
| No. | Teeth Number | Face Width | Bore Diameter | Hub Diameter | Hub Thickness |
| 1 | 16 | 7 | 4 | 20 | 20 |
| 2 | 16 | 7 | 5 | 20 | 20 |
| 3 | 16 | 7 | 6 | 20 | 20 |
| 4 | 16 | 7 | 6.35 | 20 | 20 |
| 5 | 16 | 7 | 8 | 20 | 20 |
| 6 | 16 | 7 | 10 | 20 | 20 |
| 1 | 16 | 11 | 4 | 20 | 20 |
| 2 | 16 | 11 | 5 | 20 | 20 |
| 3 | 16 | 11 | 6 | 20 | 20 |
| 4 | 16 | 11 | 6.35 | 20 | 20 |
| 5 | 16 | 11 | 8 | 20 | 20 |
| 6 | 16 | 11 | 10 | 20 | 20 |
| 1 | 16 | 16 | 4 | 20 | 20 |
| 2 | 16 | 16 | 5 | 20 | 20 |
| 3 | 16 | 16 | 6 | 20 | 20 |
| 4 | 16 | 16 | 6.35 | 20 | 20 |
| 5 | 16 | 16 | 8 | 20 | 20 |
| 6 | 16 | 16 | 10 | 20 | 20 |
